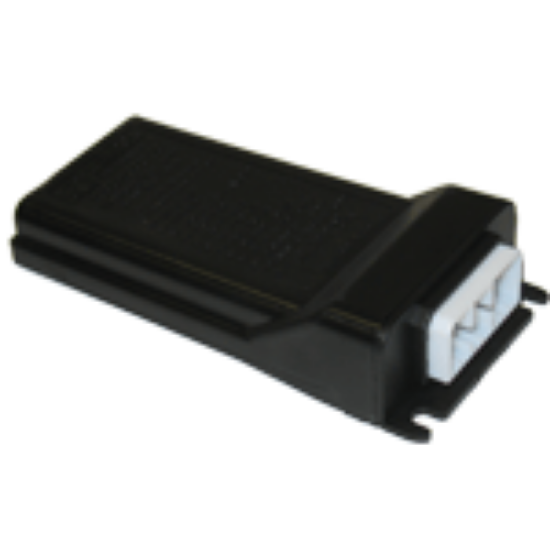

Weldon 8-Way Plug-In Flasher Part#0062795

Electronic Eight-Lamp School Bus Flasher

Use with 12VDC Systems. 16A Max continuous lamp load

• 1 = Left Amber
• 2 = Left Red
• 3 = Stop Arm (3A Max Load)
• 4 = Right Red
• 5 = Right Amber
• 6 = Batt Power
• 7 = Batt Power
• 8 = Override Power
• 9 = Start Switch (+12V)
• 10 = Seq. Door Sw. (Gnd)
• 11 = Nonseq. Door Sw. (Gnd)
• 12 = Flasher Ground
